Data wrangling

• LEO: Low Earth orbit (LEO)is an Earth-centred orbit with an altitude of 2,000 km (1,200 mi) or less (approximately one-third of the radius of Earth),[1] or with at least 11.25 periods per day (an orbital period of 128 minutes or less) and an eccentricity less than 0.25.[2] Most of the manmade objects in outer space are in LEO [1].

• VLEO: Very Low Earth Orbits (VLEO) can be defined as the orbits with a mean altitude below 450 km. Operating in these orbits can provide a number of benefits to Earth observation spacecraft as the spacecraft operates closer to the observation[2].

• GTO A geosynchronous orbit is a high Earth orbit that allows satellites to match Earth's rotation. Located at 22,236 miles (35,786 kilometers) above Earth's equator, this position is a valuable spot for monitoring weather, communications and surveillance. Because the satellite orbits at the same speed that the Earth is turning, the satellite seems to stay in place over a single longitude, though it may drift north to south,” NASA wrote on its Earth Observatory website [3] .

• SSO (or SO): It is a Sun-synchronous orbit also called a heliosynchronous orbit is a nearly polar orbit around a planet, in which the satellite passes over any given point of the planet's surface at the same local mean solar time [4] .

• ES-L1 :At the Lagrange points the gravitational forces of the two large bodies cancel out in such a way that a small object placed in orbit there is in equilibrium relative to the center of mass of the large bodies. L1 is one such point between the sun and the earth [5] .

• HEO A highly elliptical orbit, is an elliptic orbit with high eccentricity, usually referring to one around Earth [6].

• ISS A modular space station (habitable artificial satellite) in low Earth orbit. It is a multinational collaborative project between five participating space agencies: NASA (United States), Roscosmos (Russia), JAXA (Japan), ESA (Europe), and CSA (Canada) [7]

• MEO Geocentric orbits ranging in altitude from 2,000 km (1,200 mi) to just below geosynchronous orbit at 35,786 kilometers (22,236 mi). Also known as an intermediate circular orbit. These are "most commonly at 20,200 kilometers (12,600 mi), or 20,650 kilometers (12,830 mi), with an orbital period of 12 hours [8]

• HEO Geocentric orbits above the altitude of geosynchronous orbit (35,786 km or 22,236 mi) [9]

• GEO It is a circular geosynchronous orbit 35,786 kilometres (22,236 miles) above Earth's equator and following the direction of Earth's rotation [10]

• PO It is one type of satellites in which a satellite passes above or nearly above both poles of the body being orbited (usually a planet such as the Earth [11]

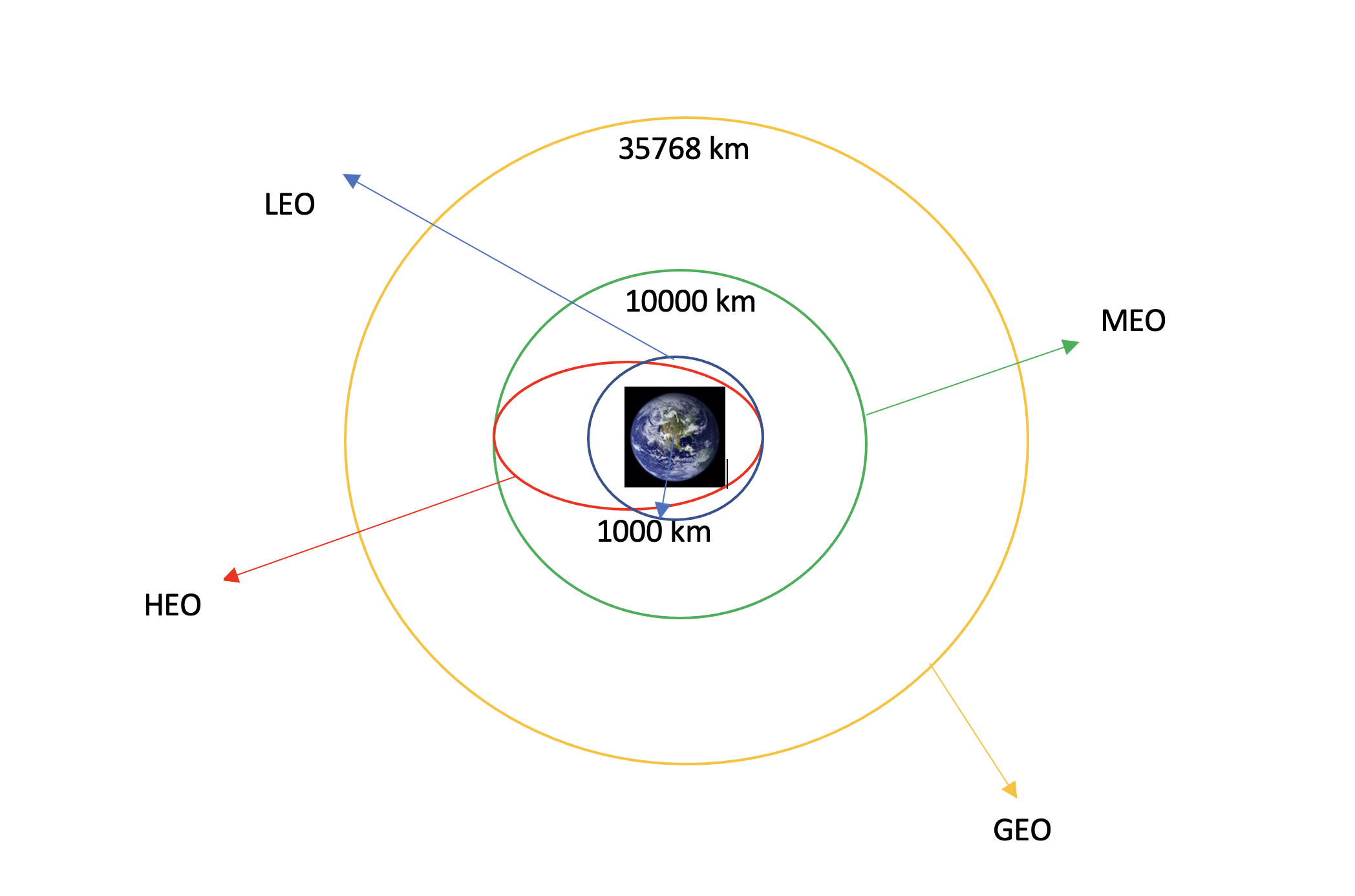

some are shown in the following plot:

# Apply value_counts on Orbit column
df['Orbit'].value_counts()

#OUTPUT
GTO      27
ISS      21
VLEO     14
PO        9
LEO       7
SSO       5
MEO       3
ES-L1     1
SO        1
GEO       1
HEO       1
Name: Orbit, dtype: int64

# landing_outcomes = values on Outcome column
landing_outcomes = df['Outcome'].value_counts()
landing_outcomes

#OUTPUT
True ASDS      41
None None      19
True RTLS      14
False ASDS      6
True Ocean      5
None ASDS       2
False Ocean     2
False RTLS      1
Name: Outcome, dtype: int64

for i,outcome in enumerate(landing_outcomes.keys()):
    print(i,outcome)

#OUTPUT
0 True ASDS
1 None None
2 True RTLS
3 False ASDS
4 True Ocean
5 None ASDS
6 False Ocean
7 False RTLS

bad_outcomes=set(landing_outcomes.keys()[[1,3,5,6,7]])
bad_outcomes

 #OUTPUT

{'False ASDS', 'False Ocean', 'False RTLS', 'None ASDS', 'None None'}

 # landing_class = 0 if bad_outcome
# landing_class = 1 otherwise
landing_class = []
for outcome in df['Outcome']:
    if outcome in bad_outcomes:
        landing_class.append(0)
    else:
        landing_class.append(1)


df['Class']=landing_class
df[['Class']].head(8)

#OUTPUT

df.head(5)

#OUTPUT

df["Class"].mean()

#OUTPUT

0.6666666666666666

df.to_csv("dataset_part_2.csv", index=False)
